Product Description
With this kit, we provide FREE SHIPPING, and the exclusive TechnoRV Learning Series through email to ensure you are successful! We also provide email, phone, and chat support on all Camp Pro Kits purchased through TechnoRV.com.
Kit Components:
- External Booster Tube with 9 dB gain antenna / 1,000 mW output
- 24 feet of USB cable to run from the Booster Tube to Repeater
- Alfa R36A Repeater (Allows multiple devices to connect wirelessly)
- Suction Cup Antenna Mount
- AC Power Supply (Wall Plug)
- DC Power Supply (Cigarette style plug)
- Heavy duty zip ties for mounting
- Waterproof tape strip
- TechnoRV Learning Series
- Click on the Product Video Tab to learn more about the Camp Pro and Suction Cup Mount
Key Features:
- Works with all operating devices
- Can be used with smart TVs, Apple TV, Roku devices, etc.
- Setup can be performed with any computer, smart phone, tablet, or anything that can connect to an access point and can connect to WiFi
- Perfect solution for RVers that are looking to mount an antenna outside and run the 24 ft cable inside to get the best signal

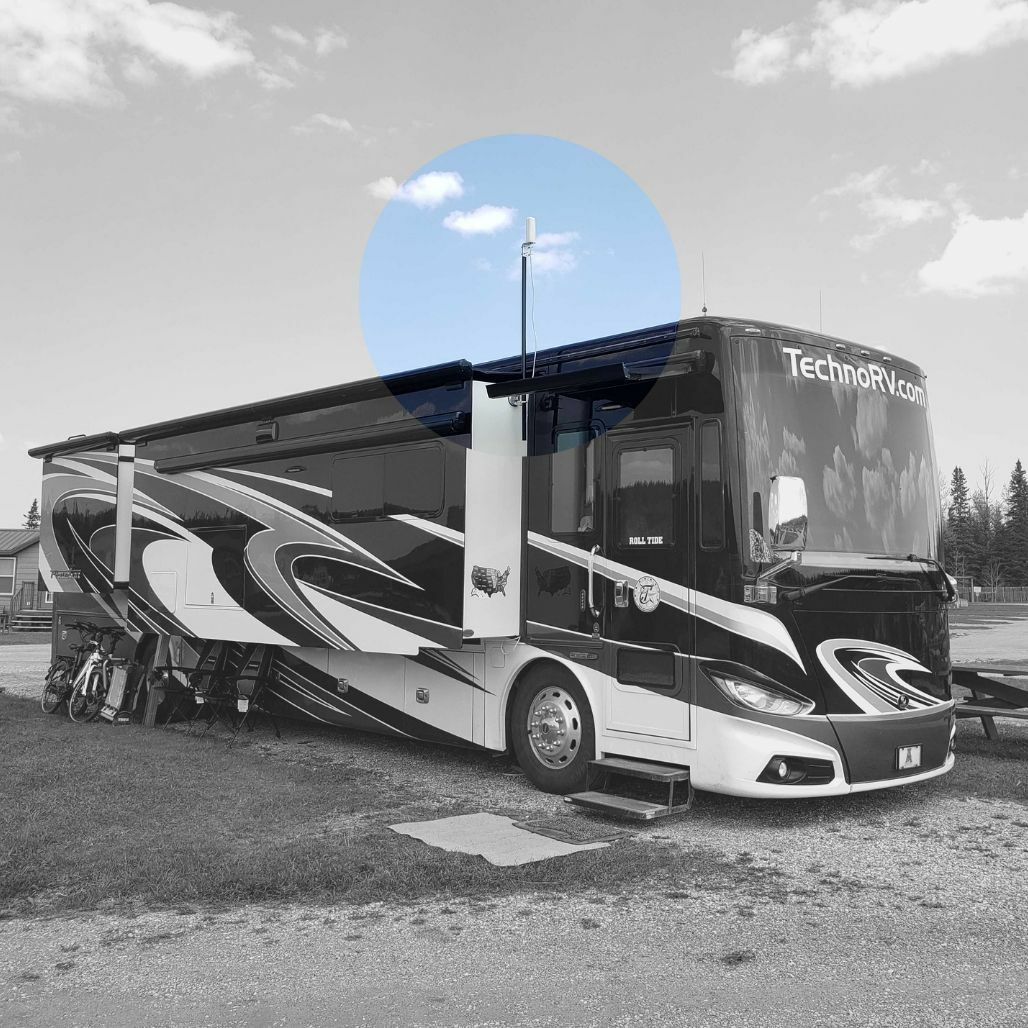

- Great for RVers that want to temporarily mount the Booster Tube to their RV without drilling any holes or running cable down their RV

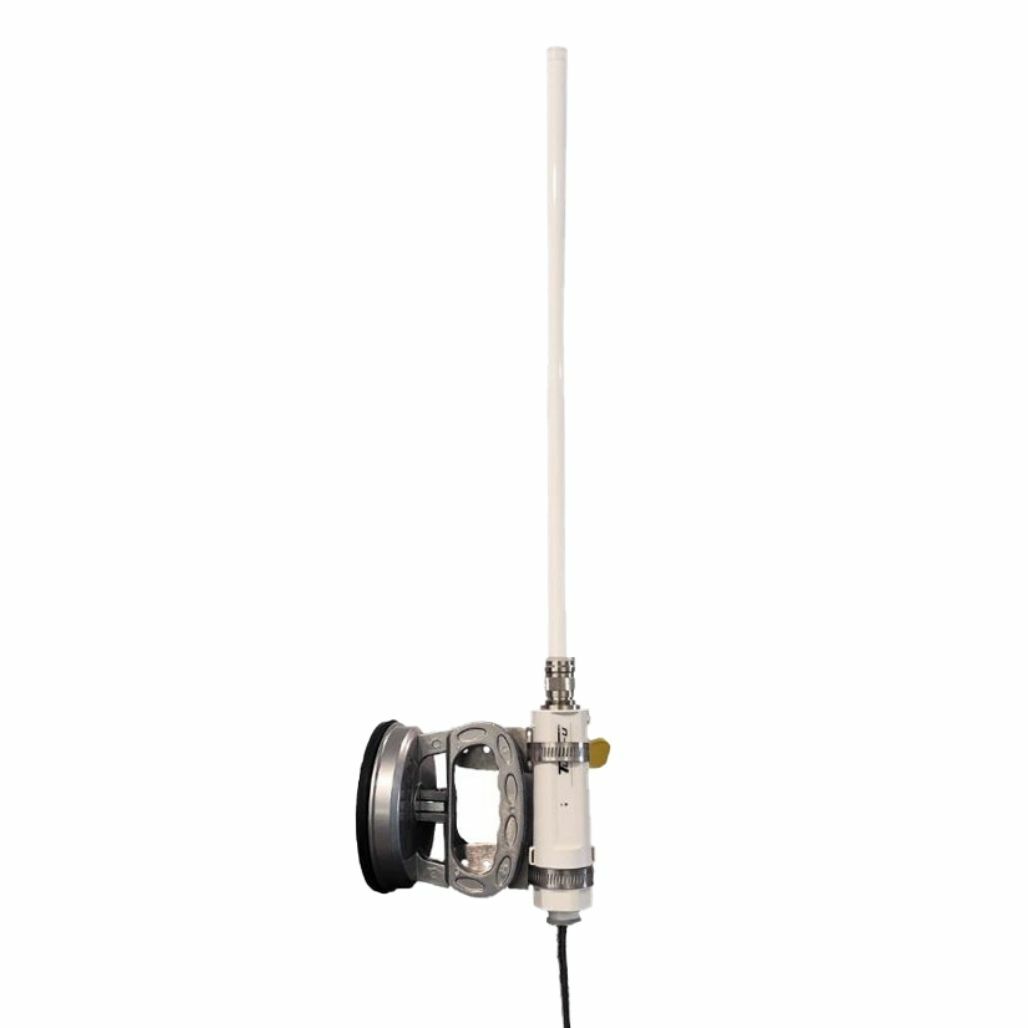

- Suction Cup Antenna Mount allows you to mount the Booster Tube near the entry point into the RV (on a slide/ near a window)
- Recommend using a 1 inch by 5-foot, schedule 40 PVC pole (not included) with the suction cup mount to raise the booster above other RVs for better line of site
*Read more about TechnoRV Warranty on WiFi Kits
TO LEARN MORE ABOUT WIFI AND THE CAMP PRO KIT, SIGN UP FOR OUR WIFI INFORMATION GUIDE BELOW:
Other Details
External Booster Tube:
Wi-Fi Standard:IEEE 802.11n
IEEE 802.11g
IEEE 802.11b
Frequency: 2.412GHz ~ 2.472GHz
Channel Width: 20/40MHz
Data Rate:
802.11b: up to 11Mbps
802.11g: up to 54Mbps
802.11n: up to 150Mbps
Interface: N male antenna connector USB 2.0 male
TX power: 30dBm
RX sensitivity: -92dB
LED Indicators: PWR, LINK
Power required: 5V±5%
Length: 7 inches tall
Width: 1 3/4 inch wide
Weight: 4.4 ounces
External Booster Tube Antenna:
Outdoor Antenna Model: AOA-2409TFFrequency: 2.4GHz-2.5GHz
Impedance: 50Ω S.W.R: ≤ 2.0
Gain: 9 dB gain antenna / 1,000 mW output
Radiation: Omni
Connector N female Material: Fiber Glass
Length: 460mm = 18in
Width: 3/4 inch wide
Weight: 3.9 ounces
Alfa R36 Repeater:
Technical Specifications802.11n standard with top speeds of 150 mbps
Universal compatibility- works with Windows, Macs, Android, iPhone, iPad
Retail box inlcludes power supply, 5 dBi external antenna, user guide CD (ethernet cable not included)
Supports AWUS036NH/NHR Wi-Fi adapter via built in USB port (or 3G USB modem)
Repeater function
Compatible with all modern encryption standards including WEP, WPA, WPA2
1 x 10/100Mbps WAN Port
1 x 10/100Mbps LAN Port
1 x detachable external 5dBi antenna
1 x USB Port
Standards
Wired: IEEE 802.3 (10Base-T) IEEE 802.3u (100Base-TX)
Wireless: IEEE 802.11, IEEE 802.11g, IEEE 802.11n
Physical
1 x 10/100Mbps WAN Port
1 x 10/100Mbps LAN Port
1 x detachable external 5dBi antenna
1 x Reset button
1 x WPS Security Key
1 x USB Port
Management
Web-base management interface
Remote management
SNTP time synchronize
Output Power
802.11b: 27dBm ± 2dBm
802.11g: 25dBm ± 2dBm
802.11n: 25dBm ± 2dBm
Sensitivity
11n - 20MHz MCS7: -71 MCS0: -9040MHz MCS7: -69 MCS0: -88
11g - 54Mbps: -75 6Mbps: -92
11b - 11Mbps: -90 1Mbps: -95
Data Rate
802.11n ( 40MHz ): up to 150Mbps
802.11n ( 20MHz ): up to 72Mbps
802.11g: 54,48,36,24,18,12,9,6Mbps
802.11b: 11,5.5,2,1Mbps
Wireless Mode
WISP
Bridge
Router
Operating Frequency
FCC: 2412~2462MHz (Ch1~Ch11)
ETSI: 2412~2472MHz (Ch1~Ch13)
Japan: 2412~2484MHz (Ch1~Ch14)
Security
Access Control Policy
MAC filter
DMZ Host
SSID Broadcast disable
Wireless MAC address Filtering
WEP Encryption
WPA-/W PA2-PSK (Pre-shared Key)
WPA/W PA2 Enterprise mode (802.1x)
WiFi Protected Setup (WPS)
Router
Shares high speed cable/xDSL Internet connection
Static Routing
VPN Pass through
NAT
802.11e WMM
IGMP Proxy
Dual SSIDs
Temperature Operating: 0ºC to 40ºC (32ºF to 104ºF)
Storage: -20ºC to 60ºC (-4ºF to 140ºF)
Humidity: Operating: 10% to 85% Non-Condensing Storage: 5% to 90% Non-Condensing
Dimensions: 93 x 70 x 26mm = 3 x 2 x 1in
Weight: 2.6 ounces
Power Input: 12V/1A

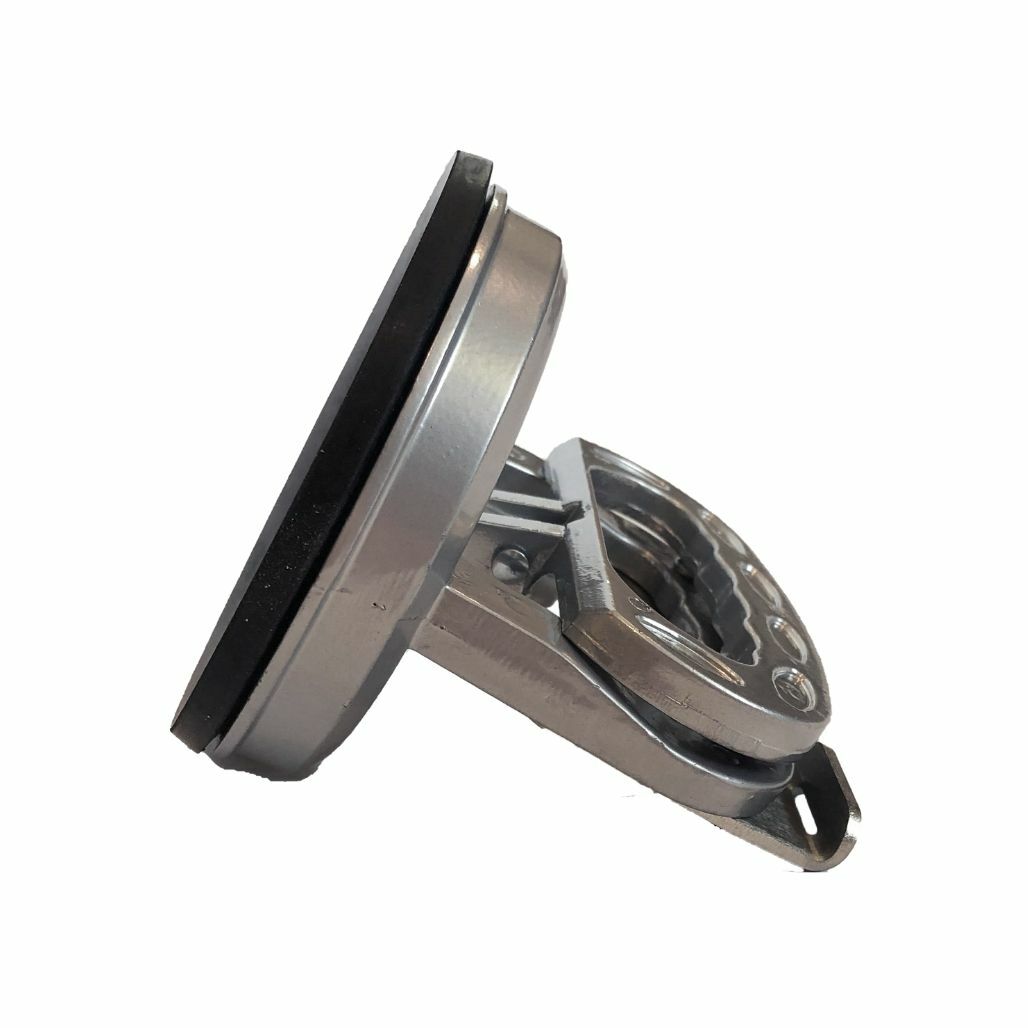

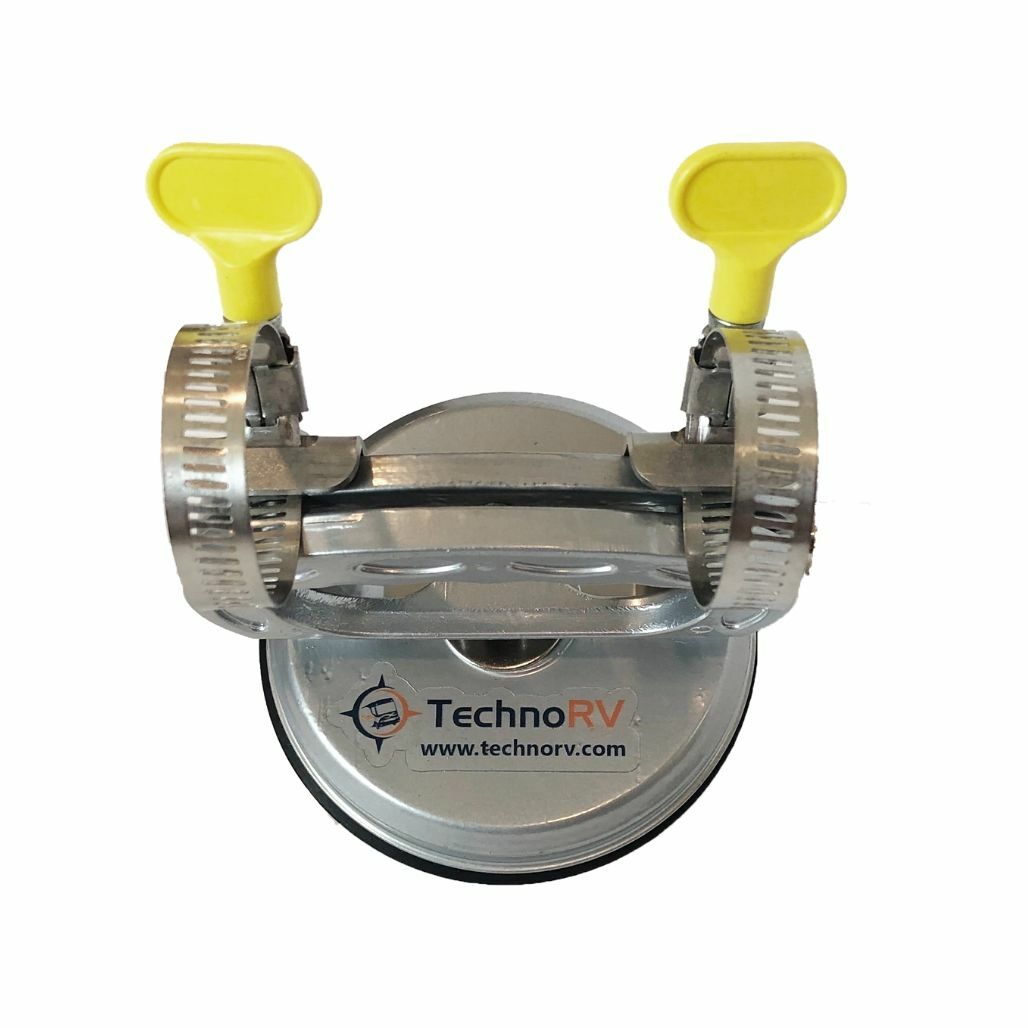

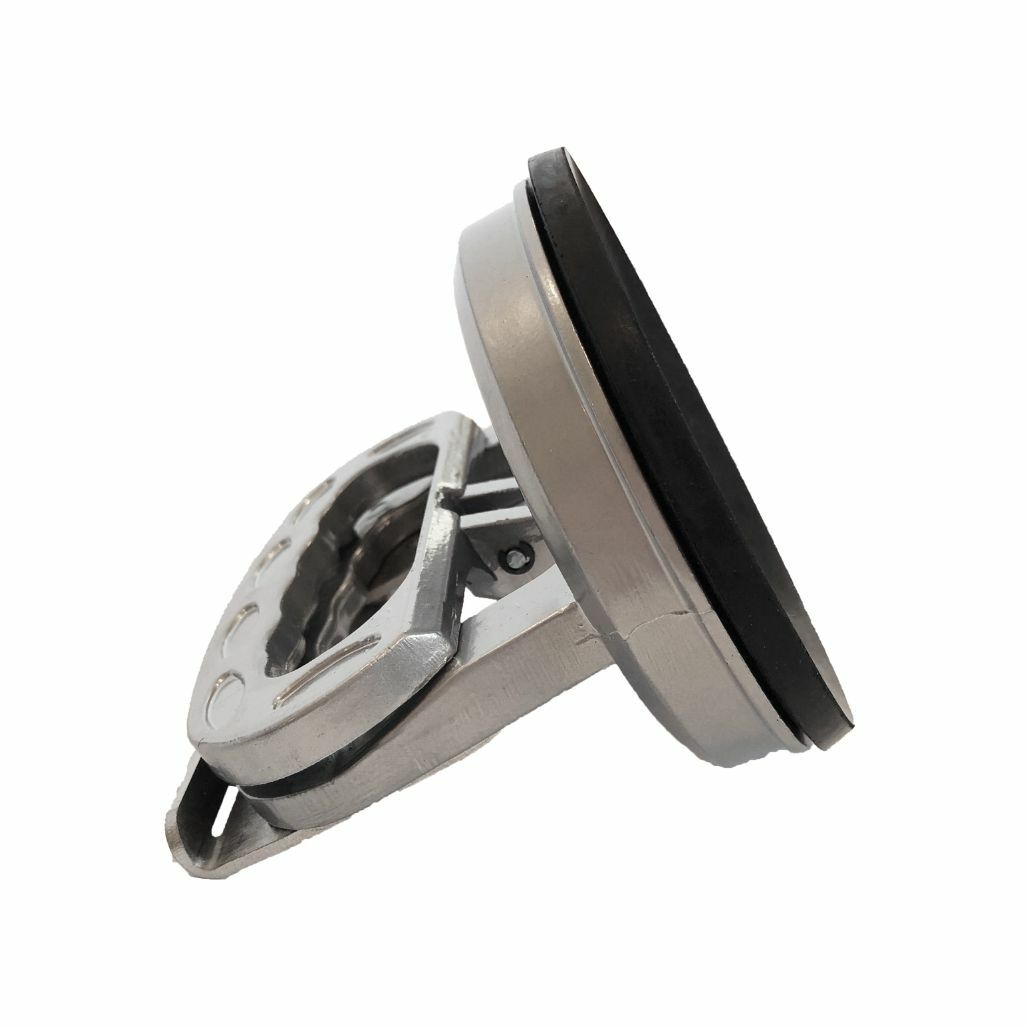

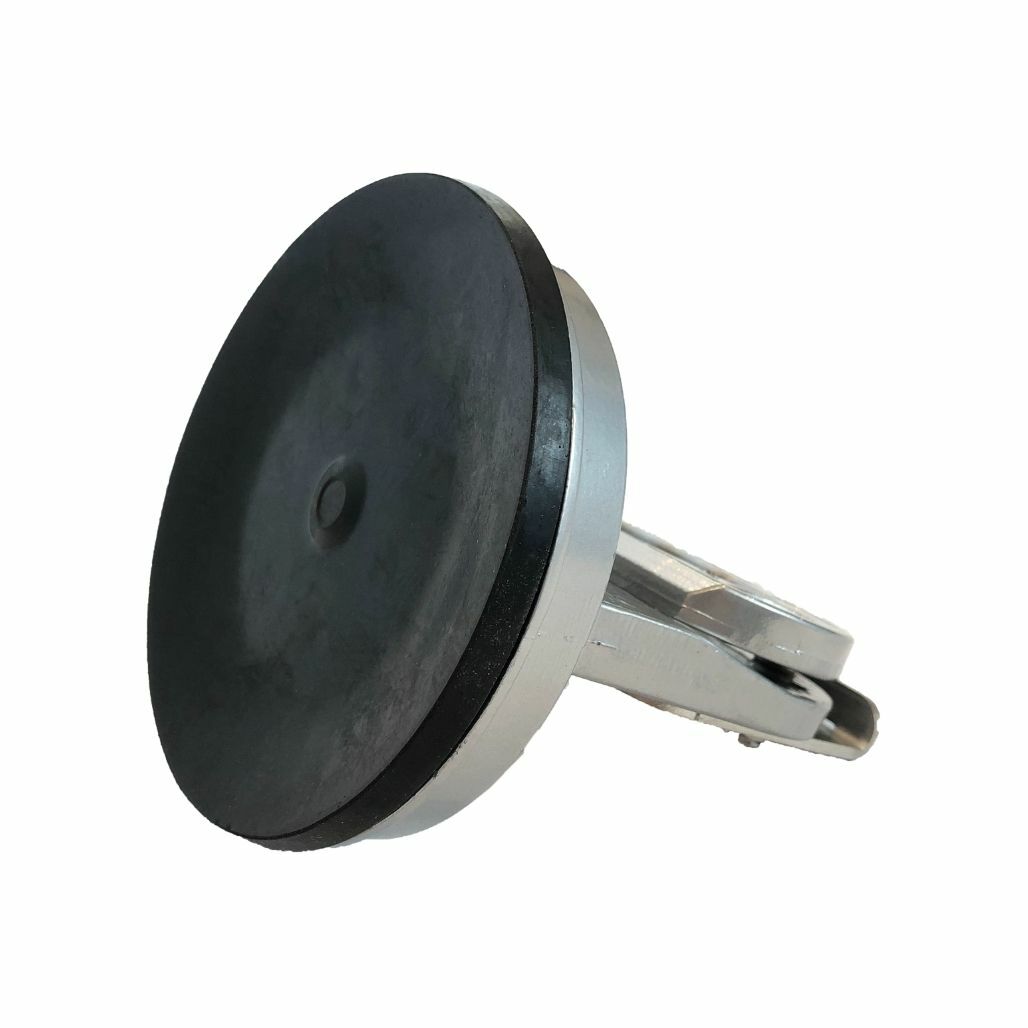

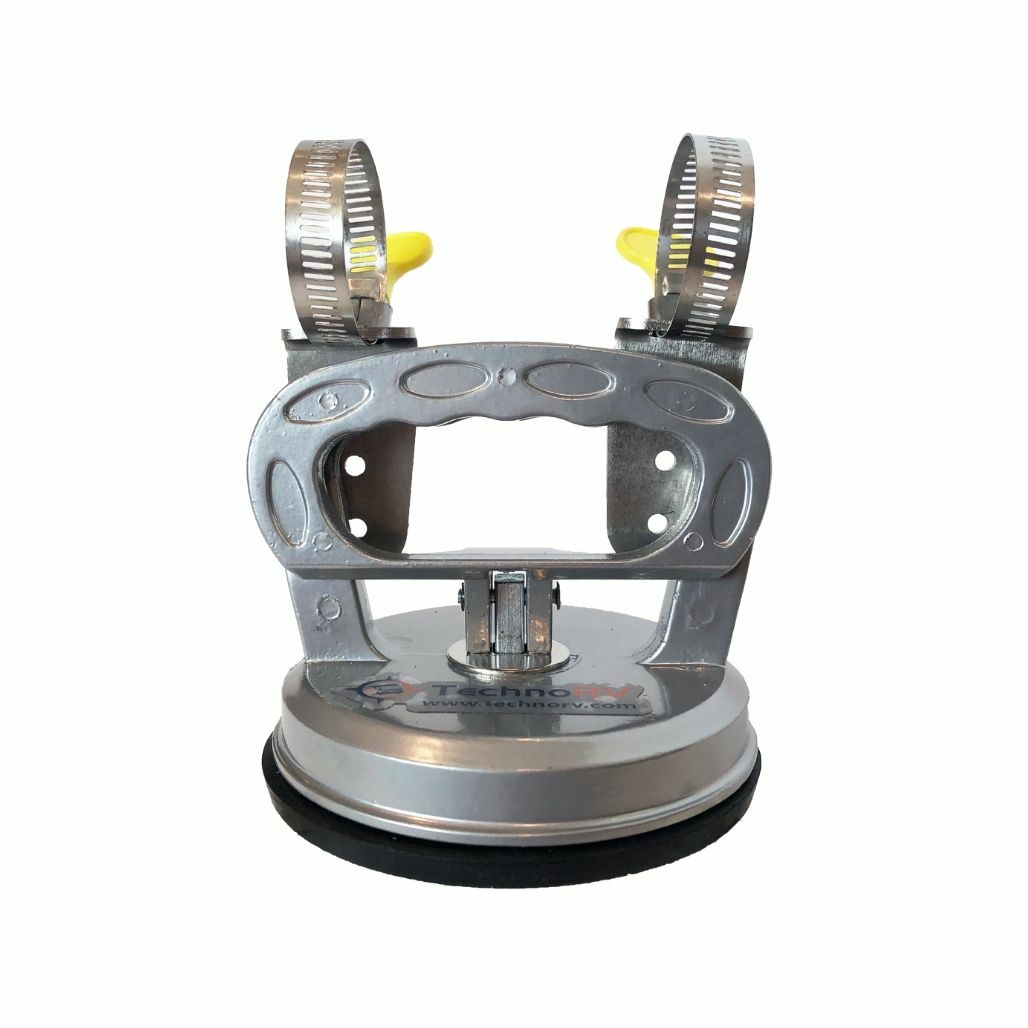

Suction Cup Antenna Mount:
Pull Force Capacity: 110 poundsSuction Cup Diameter: 4-5/8 inches
Weight: 1 pound 4 ounces
Handles and Housing: Cast Aluminum
Brackets: Stainless Steel
Product Videos
Videos Hide Videos Show Videos
-
What is in the WiFi Camp Pro 2 WiFi Boosting Kit?
Eric from TechnoRV opens the new Camp Pro 2 WiFi Boosting Kit ...
-

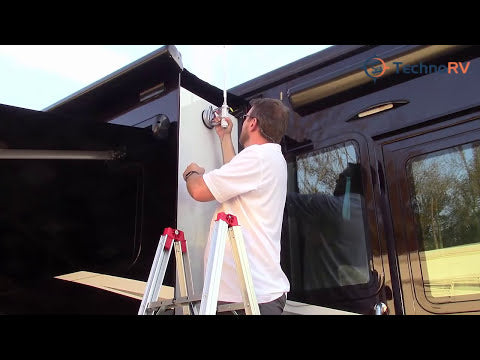

Suction Cup Mount for RV WiFi Antennas
