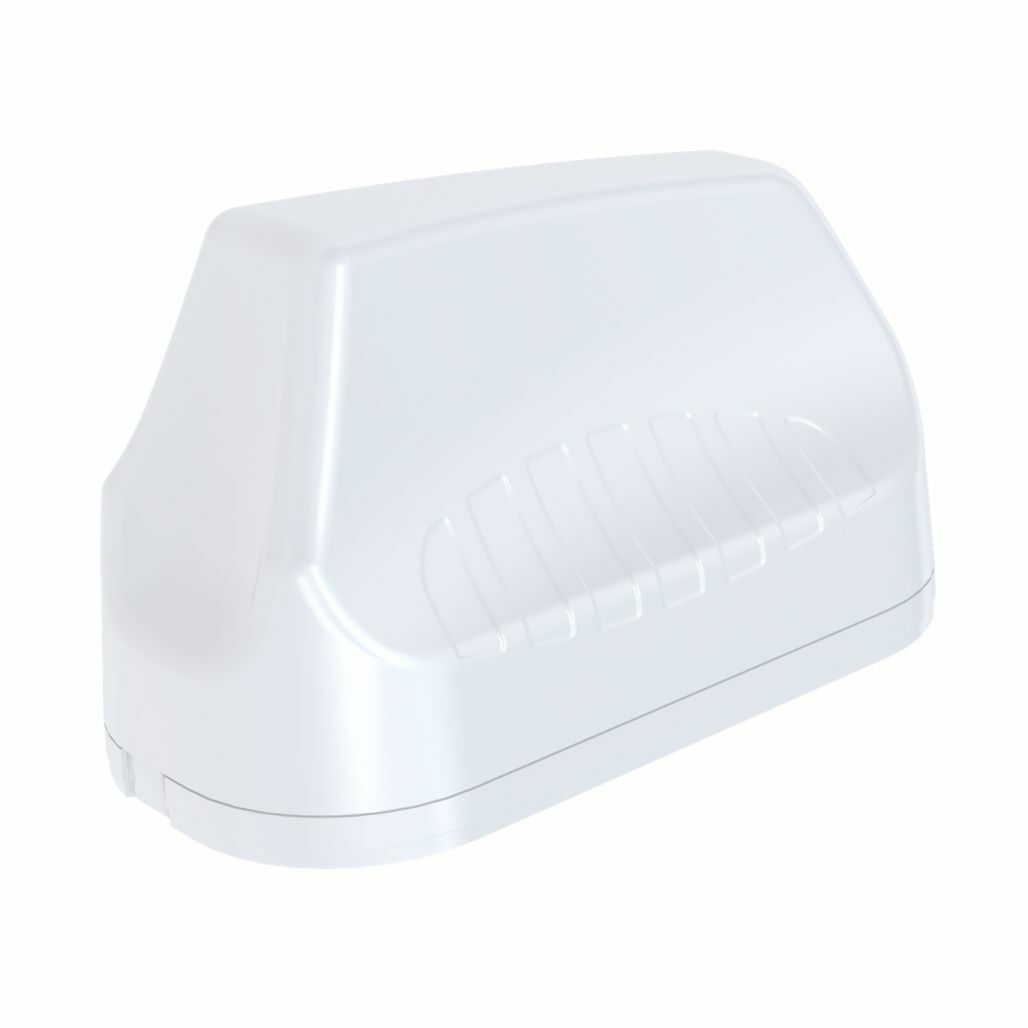

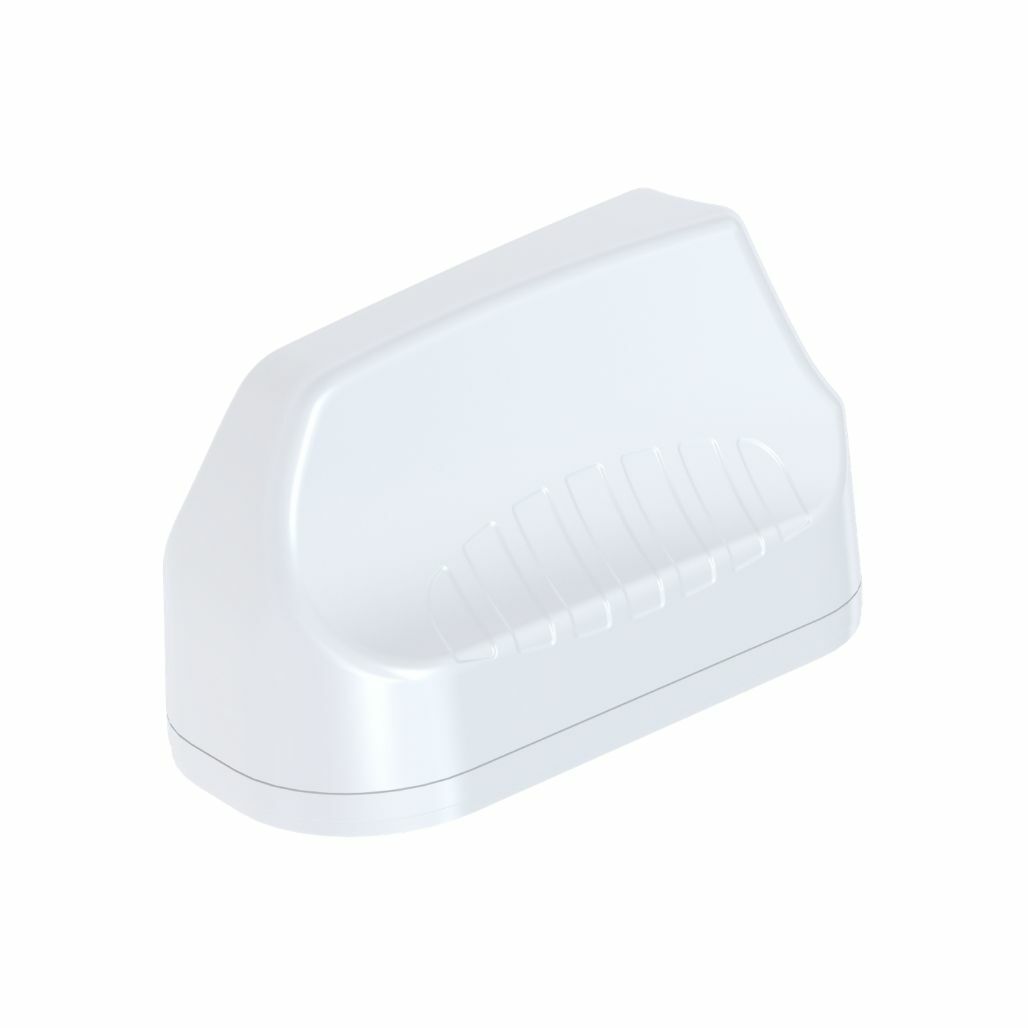

The Poynting 7-in-1 MIMO antenna is a high performance multi-frequency antenna within a single housing, providing four cellular, two Wi-Fi and a GPS antenna. The four cellular MIMO antennas (for 2G/3G/4G) cover the contemporary 698 MHz to 2700 MHz bands, as well as the new emerging LTE and 5G spectrum for 450MHz and 3.5GHz CBRS bands, which is becoming popular across the various international cellular network operators for LTE.
The ultra-wideband performance of the antenna allows it to be used across different operators and technologies and is ready for future cellular technologies up to 3.8 GHz for 5G applications. The antenna also provides two separate dual-band Wi-Fi antennas, providing concurrent 2.4 GHz and 5 GHz on each antenna with 2×2 MIMO capability. The seventh antenna is a high-performance active GPS system operating down to -40°C.
The Poynting 7-in-1 MIMO antenna was specially designed for the transportation industry, making it an excellent choice for RV and marine use.
Features:
- 7-in-1 High performance multi frequency 2G/3G/4G/LTE antenna (5G Ready)
- 4X4 MIMO LTE, 2X2 MIMO Wi-Fi & GPS
- Ultra-wideband, includes 450 MHz and 3.5 GHz CBRS bands
- Robust and water-resistant antenna (IP 68)
- Ideal for transportation and marine use

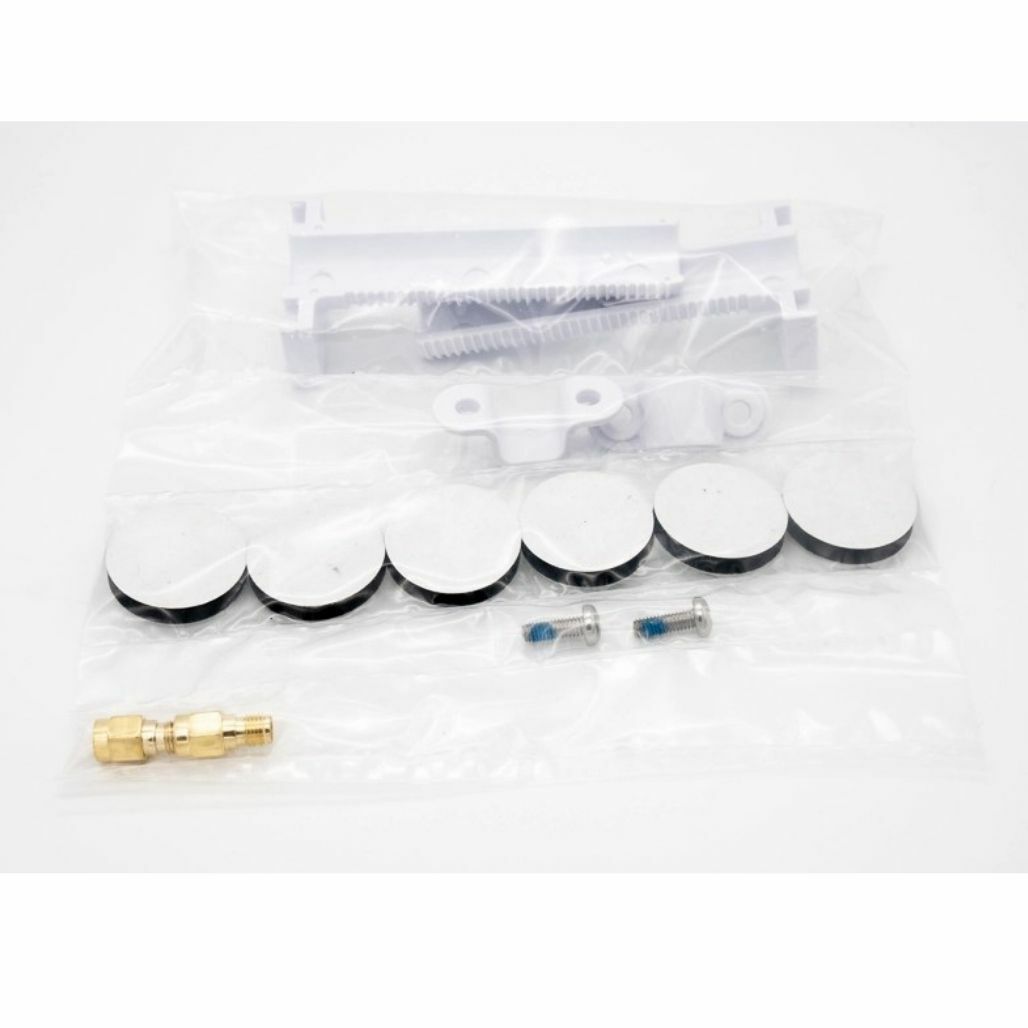

- Multiple mounting options for easy installation

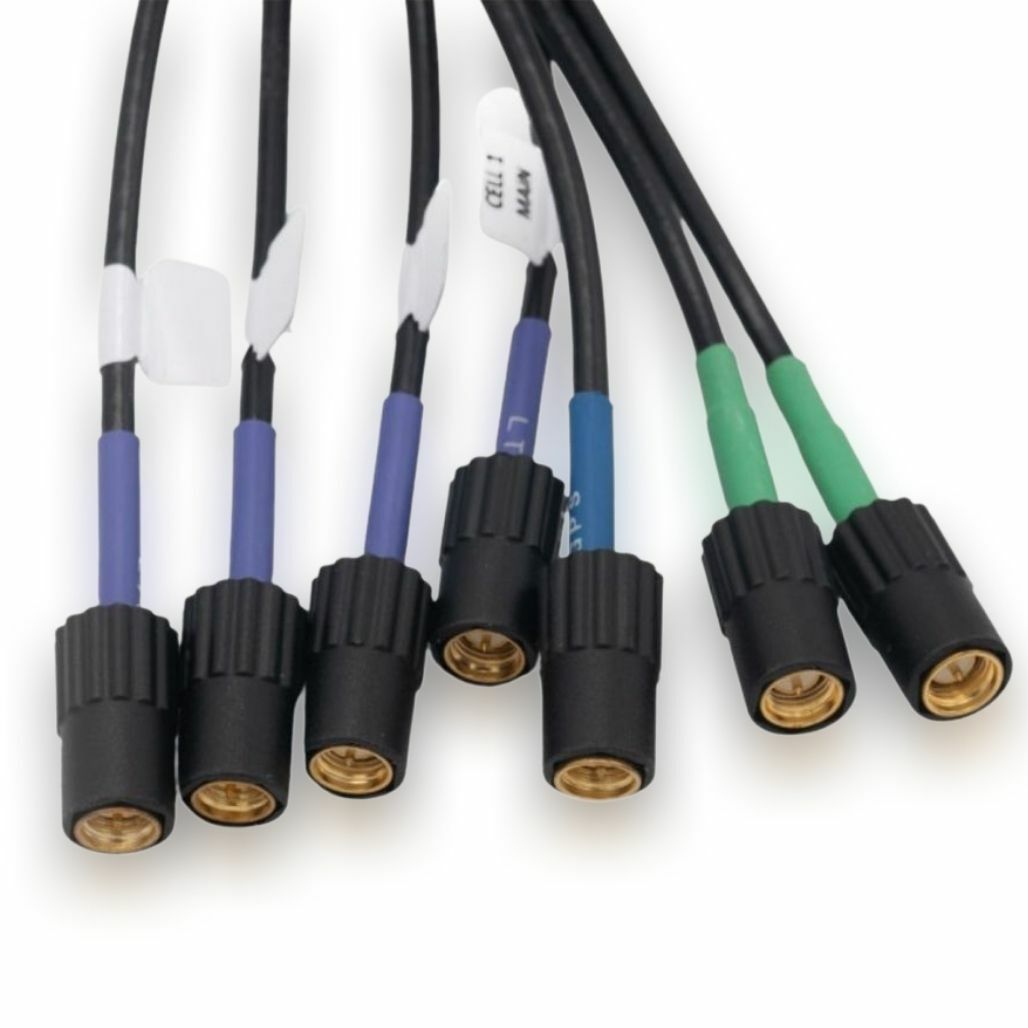

- 6 foot cable
Electrical Specifications - Cellular
- Frequency bands: 410-470 MHz 698-960 MHz 1710-2700 MHz 3400-3800 MHz
- Gain (max) Port 1-4: 1.5 dBi @ 410-470 MHz 2.2 dBi @ 698-960 MHz 6.2 dBi @ 1710-2700 MHz 4.8 dBi @ 3400-3800 MHz
- VSWR Port 1-4: ≤2.5:1 across 90% of the bands
- Feed power handling: 10 W
- Input impedance: 50 Ohm (nominal)
- Polarization: Linear Vertical
- Coax cable loss: 0.350 dB/m @ 400 MHz 0.560 dB/m @ 900 MHz 0.785 dB/m @ 1800MHz 1.20 dB/m @ 3000 MHz
- Path to Ground: Yes
GPS Antenna Electrical Specifications
- Frequency Range (GPS): 1575.42MHz/1600MHz
- Gain (Max): 21+/-2dBi
- VSWR Port 7: ≤1.5:1
- DC Voltage: 2.7-3.3 V
- DC Current: 5-15mA
- Noise Figure: ≤1.5 dB
- Nominal Impedance: 50 Ω
- Polarization: RHCP
- Filter Out Band Attenuation: 12dB Min f0+50MHz, 16dBi Min f0-50MHz
- Voltage: 2.7 - 3.3V
- Max. Power-W: 50
- Coax cable loss: 0.71 dB/m @ 1500 MHz
Wi-Fi Electrical Specifications
- Frequency: 2400-2500 MHz 5000–6000 MHz
- Gain (Max): 7 dBi
- VSWR Port 5-6: ≤2.5:1 across 90% of the bands
- Feed power handling: 10 W
- Nominal input impedance: 50 Ohm (nominal)
- Polarisation: 2 x Vertical linear
- Coax cable loss: 0.91 dB/m @ 2400 MHz 1.65 dB/m @ 5800 MHz
- Path to Ground: Yes
